Item group

Push in fittings, LE (metric)

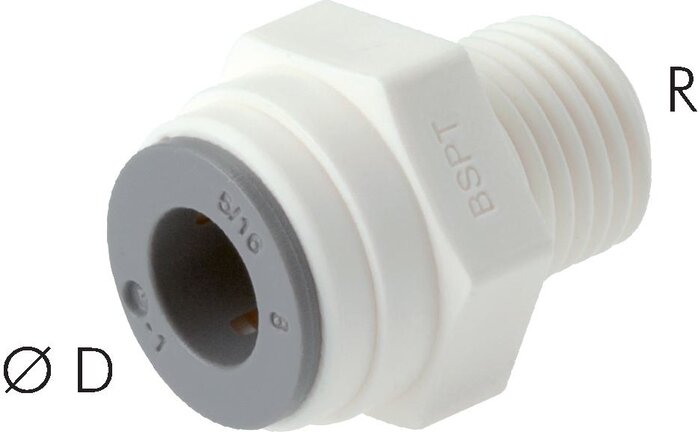

Exemplary representation: R-threads / NPT-threads Exemplary representation: G-threads

Materials:

Body and sleeve: POM (FDA approved), holding claw: Stainless steel, seals: EPDM (FDA certified)

Temperature range:

0°C to +65°C

Operating pressure:

-0.95 to 16 bar (Ø 3/8", 1/2", 10 mm & 12 mm: max. 11 bar)*

Media:

unoiled compressed air, water, liquid foodstuffs, non-hazardous gases and liquids (no mineral oils), mild chemicals

Approvals:

NSF / ANSI 61, materials acc. to FDA

Advantages:

•available for metric and imperial hoses, G thread,
•R-thread and NPT-thread available,
•compatible with many other manufacturers
*For temperatures >20°C, calculate operating pressure with this correction factor: 30°C: 0.88 - 40°C: 0.77 - 50°C: 0.69 - 65°C: 0.63, example: 50°C, operating pressure = 16 bar * 0.69 = 11 bar

{{ $t('shop.all.dokumente') }}:

{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ filter.Eigenschaft.EigenschaftName_cleanfilter }}
{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
Push in fittings, LE (metric): {{ $t('shop.all.n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelAngezeigt} ) }}
Straight push in fittings G 1/8"-4mm, IQS-LE (EPDM seal)
Straight push in fittings G 1/8"-5mm, IQS-LE (EPDM seal)
Straight push in fittings G 1/8"-6mm, IQS-LE (EPDM seal)
Straight push in fittings G 1/8"-8mm, IQS-LE (EPDM seal)
Straight push in fittings G 1/4"-4mm, IQS-LE (EPDM seal)
Straight push in fittings G 1/4"-5mm, IQS-LE (EPDM seal)
Straight push in fittings G 1/4"-6mm, IQS-LE (EPDM seal)
Straight push in fittings G 1/4"-8mm, IQS-LE (EPDM seal)
Straight push in fittings G 3/8"-8mm, IQS-LE (EPDM seal)
Straight push in fittings R 1/8"-4mm, IQS-LE (EPDM seal)
Straight push in fittings R 1/8"-5mm, IQS-LE (EPDM seal)
Straight push in fittings R 1/8"-6mm, IQS-LE (EPDM seal)
Straight push in fittings R 1/8"-8mm, IQS-LE (EPDM seal)
Straight push in fittings R 1/8"-10mm, IQS-LE (EPDM seal)
Straight push in fittings R 1/4"-4mm, IQS-LE (EPDM seal)
Straight push in fittings R 1/4"-5mm, IQS-LE (EPDM seal)
Straight push in fittings R 1/4"-6mm, IQS-LE (EPDM seal)
Straight push in fittings R 1/4"-8mm, IQS-LE (EPDM seal)
Straight push in fittings R 1/4"-10mm, IQS-LE (EPDM seal)
Straight push in fittings R 3/8"-6mm, IQS-LE (EPDM seal)
