2. Spojke (spojke s hitrim zapiranjem, hidravlicne spojke in druge)
  3. Spojke Kamlock, MIL-C-27487/EN 14420-7 (DIN 2828)
  4. Hitre spojne vticnice z notranjim navojem, EN 14420-7 (DIN 2828), Tip D (DF)
Item group

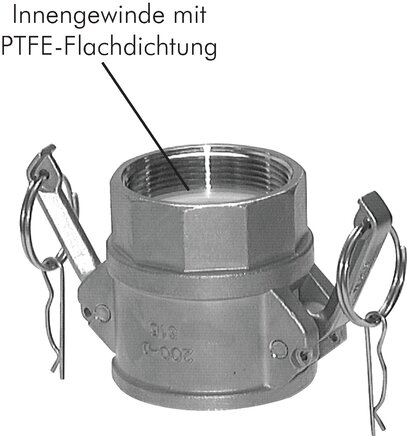

Quick coupling sockets with female thread, EN 14420-7 (DIN 2828), type D (DF)

Materials:

Body: stainless steel 1.4408, seal: NBR, handle, ring: stainless steel (female thread is equipped with PTFE flat seals)

Temperature range:

-10 to +80 °C

Advantages:

•Full throughway,
•little pressure loss,
•also suitable for solids, since there are no internal valves,
•compatible with plugs / sockets according to MIL-C-27487

Information:

The EN couplings only differ with regard to the version of the female thread and hose connection for standard couplings, they are completely compatible with standard couplings in accordance with ML-C-27487

Documents:

More information Less information

Filter items

Pitch dimension [mm]
Please select
Permission
Please select
Quick coupling sockets with female thread, EN 14420-7 (DIN 2828), type D (DF):
9 of 9 articles
DIN/EN Kamlock coupling (D/DF) G 3/4"(Female thread), Stainless steel (1.4408)(KLDGI 34 ES-DIN)
KLDGI 34 ES-DIN
DIN/EN Kamlock coupling (D/DF) G 3/4"(Female thread), Stainless steel (1.4408)
€53.50 incl. VAT
Immediately available
DIN/EN Kamlock coupling (D/DF) G 1"(Female thread), Stainless steel (1.4408)(KLDGI 10 ES-DIN)
KLDGI 10 ES-DIN
DIN/EN Kamlock coupling (D/DF) G 1"(Female thread), Stainless steel (1.4408)
€61.07 incl. VAT
Immediately available
DIN/EN Kamlock coupling (D/DF) G 1-1/4"(Female thread), Stainless steel (1.4408)(KLDGI 114 ES-DIN)
KLDGI 114 ES-DIN
DIN/EN Kamlock coupling (D/DF) G 1-1/4"(Female thread), Stainless steel (1.4408)
€88.77 incl. VAT
Immediately available
DIN/EN Kamlock coupling (D/DF) G 1-1/2"(Female thread), Stainless steel (1.4408)(KLDGI 112 ES-DIN)
KLDGI 112 ES-DIN
DIN/EN Kamlock coupling (D/DF) G 1-1/2"(Female thread), Stainless steel (1.4408)
€88.32 incl. VAT
Immediately available
DIN/EN Kamlock coupling (D/DF) G 2"(Female thread), Stainless steel (1.4408)(KLDGI 20 ES-DIN)
KLDGI 20 ES-DIN
DIN/EN Kamlock coupling (D/DF) G 2"(Female thread), Stainless steel (1.4408)
€112.10 incl. VAT
Immediately available
DIN/EN Kamlock coupling (D/DF) G 2-1/2"(Female thread), Stainless steel (1.4408)(KLDGI 212 ES-DIN)
KLDGI 212 ES-DIN
DIN/EN Kamlock coupling (D/DF) G 2-1/2"(Female thread), Stainless steel (1.4408)
€152.51 incl. VAT
Immediately available
DIN/EN Kamlock coupling (D/DF) G 3"(Female thread), Stainless steel (1.4408)(KLDGI 30 ES-DIN)
KLDGI 30 ES-DIN
DIN/EN Kamlock coupling (D/DF) G 3"(Female thread), Stainless steel (1.4408)
€225.89 incl. VAT
Immediately available
DIN/EN Kamlock coupling (D/DF) G 4"(Female thread), Stainless steel (1.4408)(KLDGI 40 ES-DIN)
KLDGI 40 ES-DIN
DIN/EN Kamlock coupling (D/DF) G 4"(Female thread), Stainless steel (1.4408)
€307.04 incl. VAT
Immediately available

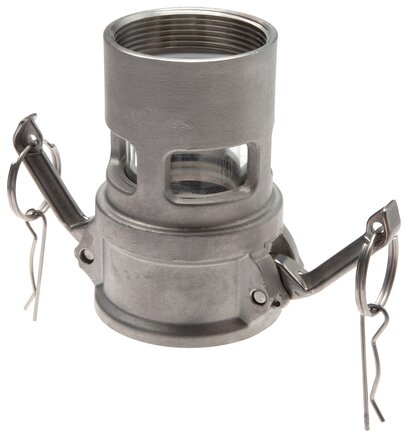

DIN/EN Kamlock coupling with inspection glass (D/DF) G 2"(Female thread), Stainless steel (1.4408)(KLDGI 20 ES-DINSG)
KLDGI 20 ES-DINSG
DIN/EN Kamlock coupling with inspection glass (D/DF) G 2"(Female thread), Stainless steel (1.4408)
€200.21 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
