Safety swivel coupling sockets with hose screw connection, NW 7,2

Documents

Description

Materials:
Housing: Nickel-plated steel, seal: NBR

Temperature range:
-20°C bis +100°C

Operating pressure:
-0,95 bis 25 bar (ein-/auskuppelbar bis max. 15 bar)

Flow:
1.800 l/min (input pressure: 6 bar, max. pressure difference: 0,5 bar)

Compatible with*:
Rectus (25, 26, 1600, 1625), TEMA (1600), CEJN (320), JWL (520, 530, 560), Legris (25, 26), Parker (PE, PEF), Prevost (E ... 07), Festo (KD4 / KS4), IMI-Norgren (238), Aventics (CP1-NW 7 / 7,8) und viele andere deutsche Fabrikate

Warning:
Only use coupling plugs made of hardened steel!

*Names and designations are.partly. registered trademarks of the respective manufacturer.

Safety swivel coupling sockets with hose screw connection, NW 7,2: 1 of 1 items

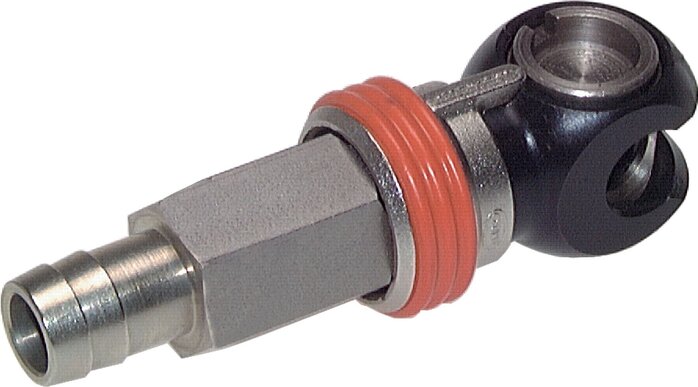

Safety swivel coupling socket (NW7,2) 9mm hose
  • actual nominal width [mm]

    8

  • Hose Ø inside [mm]

    9

Immediately available

38,96 €

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
