Item group

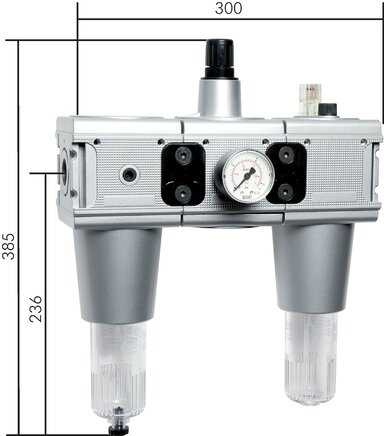

Service units, 3-part, - Multifix model series 5, 13,500 l/min*****

Version:

Filter, self-relieving pressure regulator, lubricator (model series 0 with micro mist lubricator)

Materials:

Body: die-cast zinc Z410 (model series 4 & 5: aluminium), spring hood: POM, diaphragms and seals: NBR, container: polycarbonate

Temperature range:

-10 to +60 °C

Pressure gauge connection:

G 1/4" (model series 0: G 1/8")

Pore width in the filter:

5 µm (model series 5: 40 µm)

Condensate draining:

semi-automatic****

Media:

Compressed air, neutral gases

Advantages:

•Automatic venting in the event of overpressure on the secondary side,
•Easy assembly of individual components using coupling kits within a model series and thread size,
•Hand wheel can be locked by pressing down on it

Input pressure:

1,5 - 16 bar

Max. condensate amount:

125 cm³

Switch panel thread:

M 30x1,5

Own air consumption:

max. 0.5 l/min

Oil metering at 1000 l/min:

approx. 1 - 2 drops/min

Oil supply:

450 cm³

Lubricator reaction limit (at 6 bar):

800 l/min

Flow:

800 to 13500 l/min *****

Scope of delivery:

Air unit, including 50 mm pressure gauge

ATEX:

Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not E-11 closure or electrical level monitoring)

Optional:

can be locked using a cylinder lock -K, can be locked using a cylinder lock with E 11 closure*** -KE11, version with protective cage -S, version with metal bowl** and inspection tube -M, automatic discharge -AM, automatic discharge closed when not pressurised (0 - 16 bar)-AMNC, electrical level monitoring -N

Advantages:

•can be filled with oil while under pressure
*Standard series, please prefer for use, since the pressure control range is universally usable, **Drip cap made of a metal/glass combination,***Volkswagen closure (is supplied without a spanner),****As soon as the input pressure drops below the min. input pressure, the drain valve opens automatically. By screwing the drain screw tight, the semi-automatic opening of the drain valve can be prevented, *****measured at P1 = 10 bar P2 = 6.3bar and 1 bar pressure drop

Documents:

More information Less information
Service units, 3-part, - Multifix model series 5, 13,500 l/min*****:
20 of 24 articles
Immediately available
Not in stock
Immediately available
Immediately available
Immediately available
Not in stock
Immediately available
Immediately available
Not in stock
Not in stock
Not in stock
Not in stock
Immediately available
Immediately available
Not in stock
Not in stock
Immediately available
Immediately available
Not in stock
Not in stock
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
