Item group

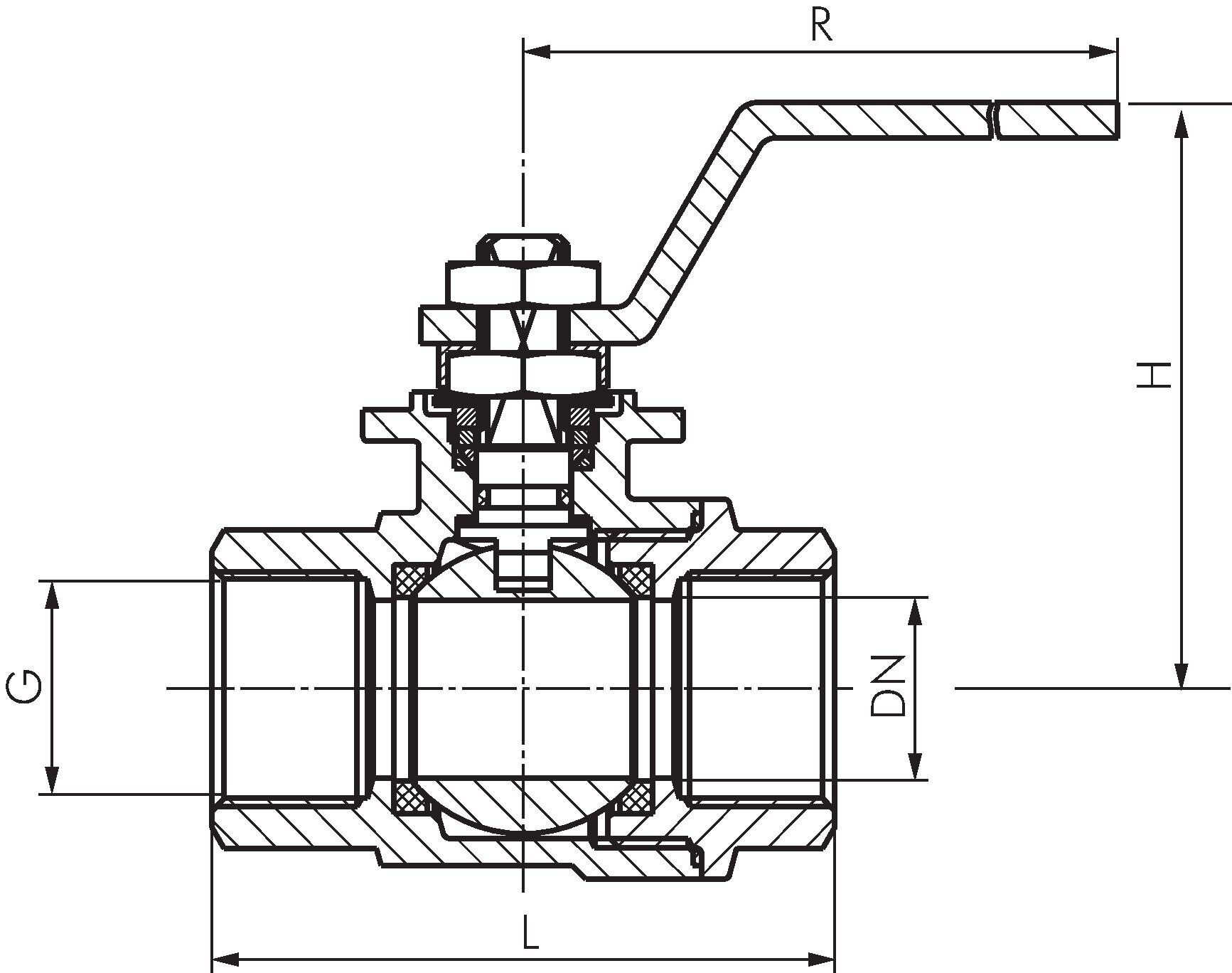

Stainless steel ball valves 2-part, for use in oxygen systems, PN 20

Materials:

Body: 1.4408, ball: 1.4401, seal: PTFE, handle: 1.4301

Temperature range:

-20 to +60 °C

Media:

Oxygen (industrial), vacuum (max. -0.9 bar)

Optional:

Certificate 3.1

Delivery:

This ball valve is supplied free of oil and grease, sealed in a plastic bag.

Advantages:

•Mounting flange according to ISO 5211 allows mounting of a drive in conjunction with mounting bridge and shaft adapter

Documents:

More information Less information
Stainless steel ball valves 2-part, for use in oxygen systems, PN 20:
7 of 7 articles
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
