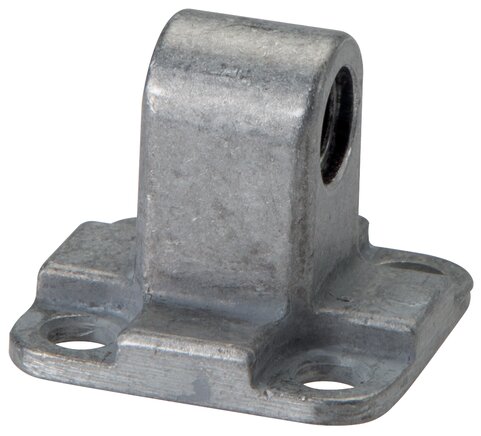

Swivel mountings clip (Ø 12 - 25), for compact cylinder UNITOP

Description

Materials:
aluminium

Scope of delivery:
1 pc swivel fixation, incl. 4 fastening screws

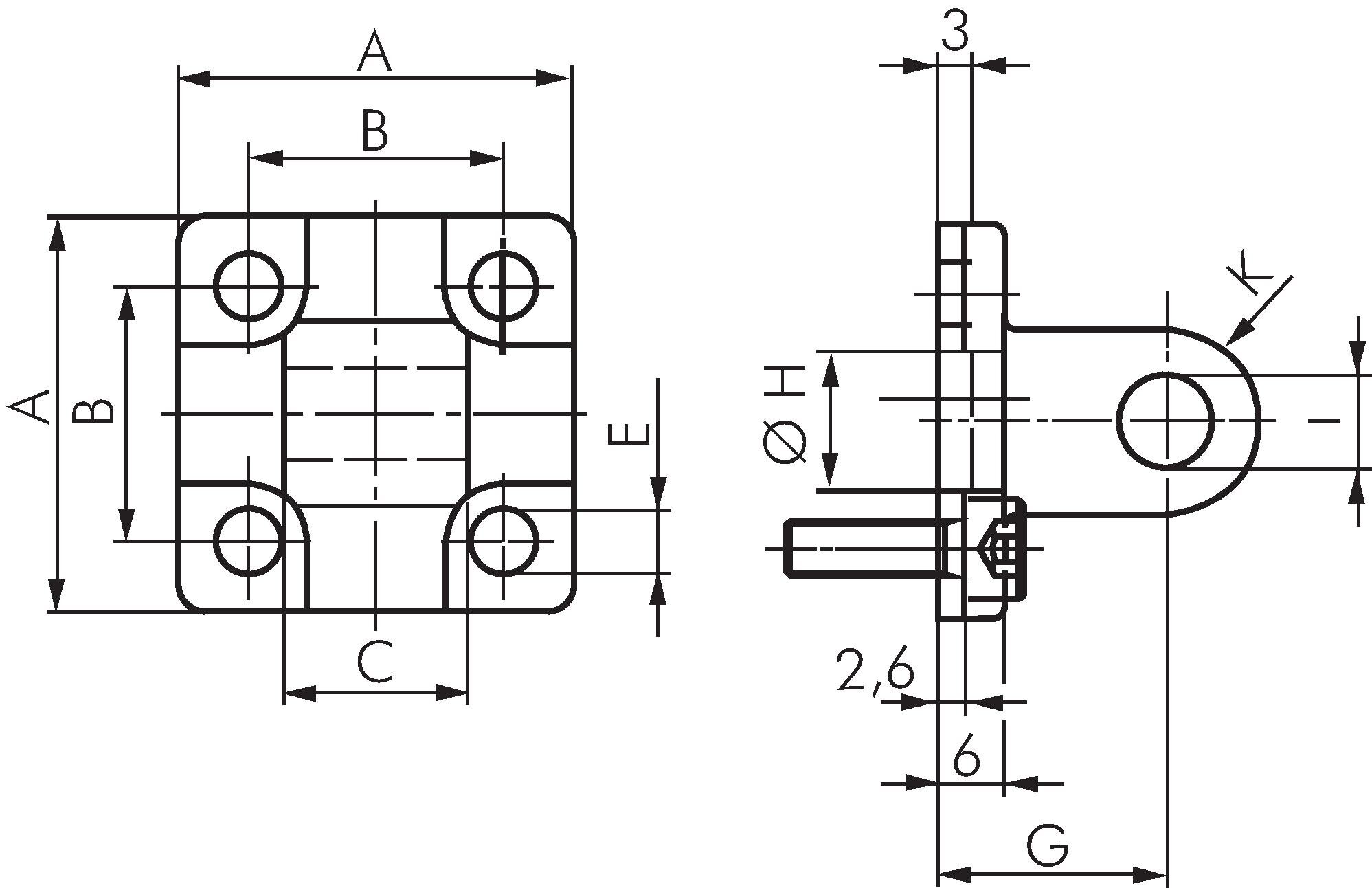

Find the right item

for piston Ø [mm]
A [mm]
B [mm]
C [mm]
E [mm]
F
G [mm]
H [mm]
I [mm]
K [mm]

Swivel mountings clip (Ø 12 - 25), for compact cylinder UNITOP: 3 of 3 items

Loop strap swivel fastening for compact cylinders 12 & 16 mm
  • for piston Ø [mm]

    12 & 16

  • A [mm]

    27

  • B [mm]

    18

  • C [mm]

    12

  • E [mm]

    4,5

  • F

    M 4 x 16

Immediately available

11,10 €

Loop strap swivel fastening for compact cylinders 20 mm
  • for piston Ø [mm]

    20

  • A [mm]

    34

  • B [mm]

    22

  • C [mm]

    16

  • E [mm]

    5,5

  • F

    M 5 x 20

Immediately available

12,20 €

Loop strap swivel fastening for compact cylinders 25 mm
  • for piston Ø [mm]

    25

  • A [mm]

    38

  • B [mm]

    26

  • C [mm]

    16

  • E [mm]

    5,5

  • F

    M 5 x 20

Immediately available

13,35 €

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
