Item group

Turbine vibrators (rotating)

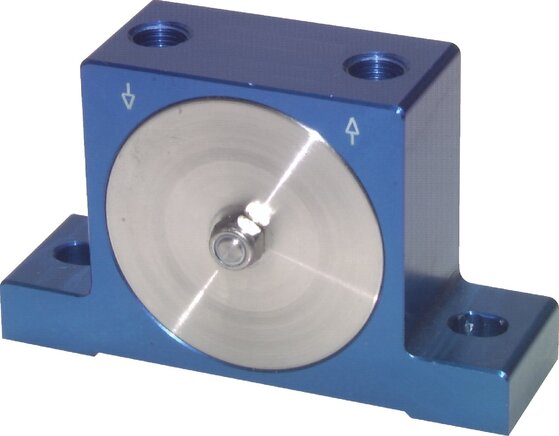

Name: Turbine vibrator, 1440 N, 41000 rpm (Standard)
Brand: Landefeld
SKU: VT 1A
Price: 420.33 EUR
Availability: InStock

Príklady vyobrazení: Turbínový vibrátor

Materials:

Body: anodised aluminium, turbine: aluminium, cover: stainless steel 1.4305

Temperature range:

-20 to +80 °C

Operating pressure:

2 to 6 bar

Media:

unoiled compressed air (20 µm)

Installation position:

arbitrary

Application:

larger spectrum of vibrations (adjustable via pressure and volume flow)

Advantages:

•low noise (70 dB (A)),
•maintenance free as very low wearing,
•common exhaust air ducting

Optional:

ATEX approval II 3D T5-X

Documents:

More information

Turbine vibrators (rotating):

12 of 12 articles

VT 1A

Turbine vibrator, 1440 N, 41000 rpm (Standard)

€420.33 incl. VAT

Quantity

pcs

Immediately available

Version	Force (at 6 bar) [N]	Frequency (at 6 bar) [1/min]	Air consumption (at 6 bar) [l/min]
Standard	1440	41000	85

VT 1B

Turbine vibrator, 1650 N, 32000 rpm (Standard)

€447.01 incl. VAT

Quantity

pcs

Immediately available

Version	Force (at 6 bar) [N]	Frequency (at 6 bar) [1/min]	Air consumption (at 6 bar) [l/min]
Standard	1650	32000	105

VT 2A

Turbine vibrator, 3630 N, 26000 rpm (Standard)

€515.58 incl. VAT

Quantity

pcs

Immediately available

Version	Force (at 6 bar) [N]	Frequency (at 6 bar) [1/min]	Air consumption (at 6 bar) [l/min]
Standard	3630	26000	180

VT 2B

Turbine vibrator, 4180 N, 18500 rpm (Standard)

€542.31 incl. VAT

Quantity

pcs

Immediately available

Version	Force (at 6 bar) [N]	Frequency (at 6 bar) [1/min]	Air consumption (at 6 bar) [l/min]
Standard	4180	18500	225

VT 3A

Turbine vibrator, 8610 N, 11000 rpm (Standard)

€755.45 incl. VAT

Quantity

pcs

Immediately available

Version	Force (at 6 bar) [N]	Frequency (at 6 bar) [1/min]	Air consumption (at 6 bar) [l/min]
Standard	8610	11000	350

VT 3B

Turbine vibrator, 10000 N, 9500 rpm (Standard)

€871.38 incl. VAT

Quantity

pcs

Immediately available

Version	Force (at 6 bar) [N]	Frequency (at 6 bar) [1/min]	Air consumption (at 6 bar) [l/min]
Standard	10000	9500	500

VT 1A-X

Turbine vibrator, 1440 N, 41000 rpm (ATEX approval)

€461.42 incl. VAT

Quantity

pcs

Immediately available

Version	Force (at 6 bar) [N]	Frequency (at 6 bar) [1/min]	Air consumption (at 6 bar) [l/min]
ATEX approval	1440	41000	85

VT 1B-X

Turbine vibrator, 1650 N, 32000 rpm (ATEX approval)

€576.23 incl. VAT

Quantity

pcs

Immediately available

Version	Force (at 6 bar) [N]	Frequency (at 6 bar) [1/min]	Air consumption (at 6 bar) [l/min]
ATEX approval	1650	32000	105

VT 2A-X

Turbine vibrator, 3630 N, 26000 rpm (ATEX approval)

€565.92 incl. VAT

Quantity

pcs

Immediately available

Version	Force (at 6 bar) [N]	Frequency (at 6 bar) [1/min]	Air consumption (at 6 bar) [l/min]
ATEX approval	3630	26000	180

VT 2B-X

Turbine vibrator, 4180 N, 18500 rpm (ATEX approval)

€702.06 incl. VAT

Quantity

pcs

Immediately available

Version	Force (at 6 bar) [N]	Frequency (at 6 bar) [1/min]	Air consumption (at 6 bar) [l/min]
ATEX approval	4180	18500	225

VT 3A-X

Turbine vibrator, 8610 N, 11000 rpm (ATEX approval)

€780.84 incl. VAT

Quantity

pcs

Immediately available

Version	Force (at 6 bar) [N]	Frequency (at 6 bar) [1/min]	Air consumption (at 6 bar) [l/min]
ATEX approval	8610	11000	350

VT 3B-X

Turbine vibrator, 10000 N, 9500 rpm (ATEX approval)

€898.01 incl. VAT

Quantity

pcs

Immediately available

Version	Force (at 6 bar) [N]	Frequency (at 6 bar) [1/min]	Air consumption (at 6 bar) [l/min]
ATEX approval	10000	9500	500

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
