Item group

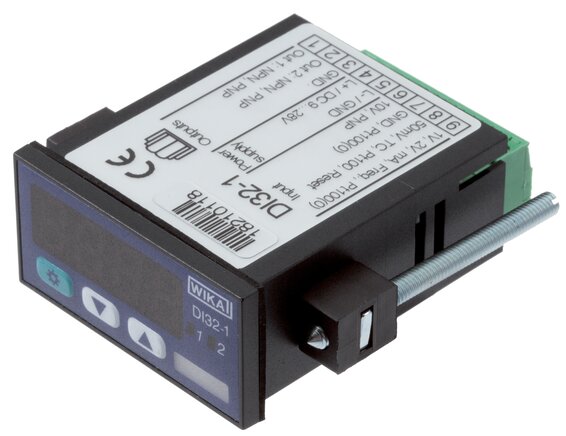

Universal display instrument and regulation device for switch panel mounting, 24 x 48 mm
Materials:
Housing and window: polycarbonate
Display:
4-digit LED display, height of digits 10 mm
Temperature range:
-20 to +50 °C
Protection class:
IP 65 (front side)
Power supply:
9 to 28 V (DC)
Power input:
110 mA
Electrical connection:
Screw terminals
Input signal:
Standard signals (0-20 mA, 4-20 mA, 0-50 mV, 0-1 V, 0-2 V and 0-10 V), resistance thermometer (Pt100, 3-wire and Pt1000, 2-wire), thermocouples (type K, J, N, T, S, R, B, E and L), frequency / rotational speed (TTL and switching contact)
Control output (PNP/NPN):
2 switching outputs (not galvanically isolated, 2-point, 3-point, 2-point with alarm, min- / max alarm common or separate, switching points can be selected at will), max. 100 mA (DC)
Conversion rate:
Standard signal and frequency measurement: approx. 100 measurements/sec., temperature measurement: approx. 1 measurement per second
Display accuracy:
± 0.2 % of the span for voltage signals
Dimensions:
Front frame: 24 x 48 mm, installation depth (with terminal connector): approx. 67 mm, switch panel cutout: 22 x 45 mm
Note:
WIKA Type DI32-1
Documents:
More information
Universal display instrument and regulation device for switch panel mounting, 24 x 48 mm:
1 of 1 articles
€423.00
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
