Item group

Yokes (male threads) with bolts, for compact cylinder UNITOP

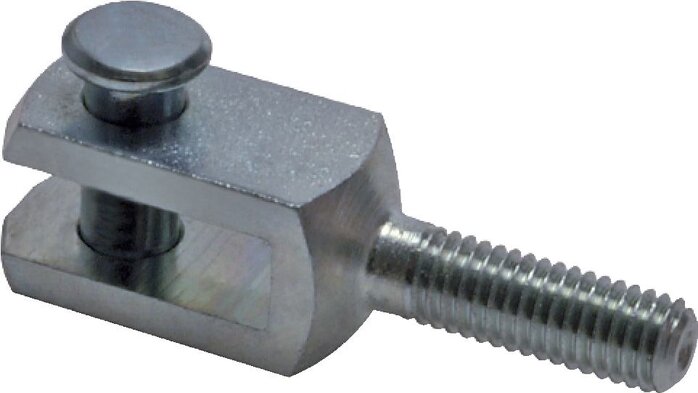

Name: Yoke, with bolts, external male thread M 6, zinc plated steel
Brand: Landefeld
SKU: GAKA M6
Price: 20.92 EUR
Availability: InStock

Príklady vyobrazení: Vidlicová hlava (vnejší závit) se šroubem

Materials:

Zinc plated steel

Documents:

Catalogue page Atlas 9 (Page 856) (PDF)

More information

Yokes (male threads) with bolts, for compact cylinder UNITOP:

4 of 4 articles

GAKA M6

Yoke, with bolts, external male thread M 6, zinc plated steel

€20.92 incl. VAT

Quantity

pcs

Immediately available

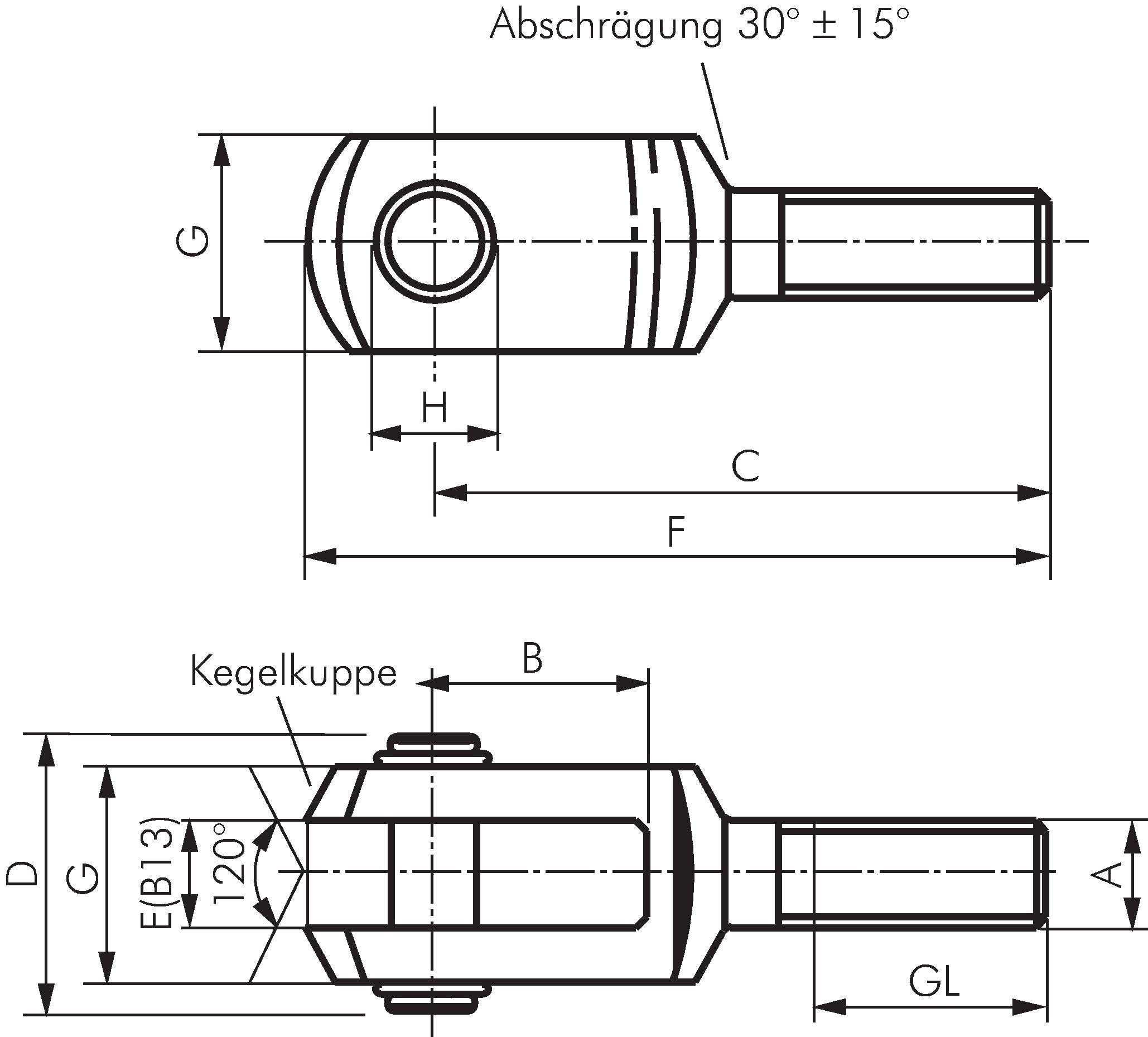

for piston diameter [mm]	A	B [mm]	C [mm]
32 & 40	M 6	12	37

GAKA M8

Yoke, with bolts, external male thread M 8, zinc plated steel

€25.85 incl. VAT

Quantity

pcs

Immediately available

for piston diameter [mm]	A	B [mm]	C [mm]
50 & 63	M 8	16	47

GAKA M10

Yoke, with bolts, external male thread M 10, zinc plated steel

€23.68 incl. VAT

Quantity

pcs

Immediately available

for piston diameter [mm]	A	B [mm]	C [mm]
80	M 10	20	57

GAKA M12

Yoke, with bolts, external male thread M 12, zinc plated steel

€26.66 incl. VAT

Quantity

pcs

Immediately available

for piston diameter [mm]	A	B [mm]	C [mm]
100	M 12	24	68

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
