Item description
Application:

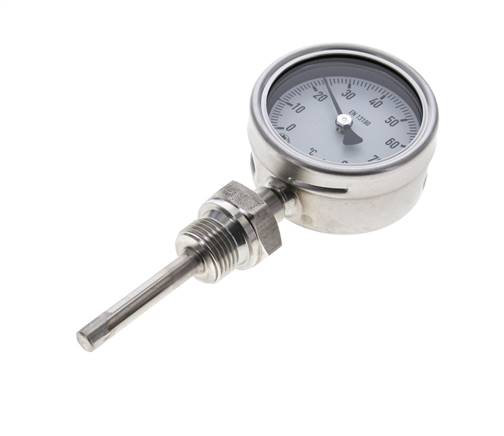

Premium thermometers for aggressive media in chemistry, petrochemical engineering and process engineering. Also for device engineering, food industry or the like. The devices meet the highest metrological requirements in harsh environments and also tolerate excess temperatures.

Materials:
Housing: 1.4301, stem: 1.4571, window: instrument plate glass

Display correction:
Indicator with micro-adjustment

Protection class:
IP 65

Protective tube connection:
G 1/2" (thermowell model B)

Dip shaft Ø:
8 mm

Class:
1

Temperature range:
Environment: -40 to +70 °C

Operating pressure at the stem:
max. 25 bar

Note:
WIKA Type R55
Properties
Di­am­e­ter [mm] 63
Dis­play range [°C] 0 to +80
Stem length L [mm] 63
Scale di­vi­sion [K] 1
Overtem­per­a­ture re­sis­tant up to [°C] 160
F [mm] 57
G [mm] 35
Further information on TS806363ES
Weight 360 g / pcs
GTIN 4050571705619
Customs duty number 90251900
RoHS compliant Yes
Manufacturer WIKA (WEEE DE92770372)
Documents


All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
