Item group

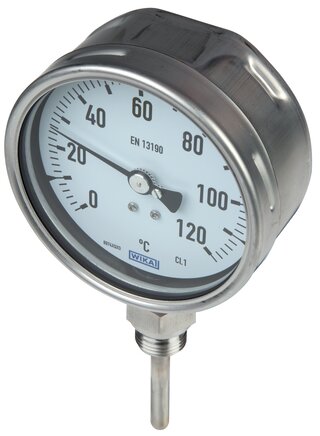

Vertical bimetallic thermometer without thermowell - chemical version, class 1,0
Application:
Premium thermometers for aggressive media in chemistry, petrochemical engineering and process engineering. Also for device engineering, food industry or the like. The devices meet the highest metrological requirements in harsh environments and also tolerate excess temperatures.
Materials:
Housing: 1.4301, stem: 1.4571, window: instrument plate glass
Display correction:
Indicator with micro-adjustment
Protection class:
IP 65
Protective tube connection:
G 1/2" (thermowell model B)
Dip shaft Ø:
8 mm
Class:
1
Temperature range:
Environment: -40 to +70 °C
Operating pressure at the stem:
max. 25 bar
Note:
WIKA Type R55
Documents:
More information
Filter items
more filters
Vertical bimetallic thermometer without thermowell - chemical version, class 1,0:
20 of 112 articles
€359.37
incl. VAT
TS 5563100 ES
Bimetallic thermometer, vert-ical D63/-50 to +50°C/100mm
€359.37
incl. VAT
TS 5563160 ES
Bimetallic thermometer, vert-ical D63/-50 to +50°C/160mm
€359.37
incl. VAT
Not in stock
TS 5563200 ES
Bimetallic thermometer, vert-ical D63/-50 to +50°C/200mm
€336.47
incl. VAT
Not in stock
€336.88
incl. VAT
TS 3563100 ES
Bimetallic thermometer, vert-ical D63/-30 to +50°C/100mm
€336.88
incl. VAT
Not in stock
TS 3563160 ES
Bimetallic thermometer, vert-ical D63/-30 to +50°C/160mm
€336.88
incl. VAT
TS 3563200 ES
Bimetallic thermometer, vert-ical D63/-30 to +50°C/200mm
€336.88
incl. VAT
Not in stock
€336.88
incl. VAT
TS 2663100 ES
Bimetallic thermometer, vert-ical D63/-20 to +60°C/100mm
€336.88
incl. VAT
TS 2663160 ES
Bimetallic thermometer, vert-ical D63/-20 to +60°C/160mm
€336.88
incl. VAT
TS 2663200 ES
Bimetallic thermometer, vert-ical D63/-20 to +60°C/200mm
€336.88
incl. VAT
€318.78
incl. VAT
TS 6063100 ES
Bimetallic thermometer, vert-ical D63/0 to +60°C/100mm
€318.78
incl. VAT
TS 6063160 ES
Bimetallic thermometer, vert-ical D63/0 to +60°C/160mm
€318.78
incl. VAT
TS 6063200 ES
Bimetallic thermometer, vert-ical D63/0 to +60°C/200mm
€318.78
incl. VAT
€318.78
incl. VAT
TS 8063100 ES
Bimetallic thermometer, vert-ical D63/0 to +80°C/100mm
€318.78
incl. VAT
TS 8063160 ES
Bimetallic thermometer, vert-ical D63/0 to +80°C/160mm
€318.78
incl. VAT
deliverable again in ⌀ 13 days
TS 8063200 ES
Bimetallic thermometer, vert-ical D63/0 to +80°C/200mm
€318.78
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
