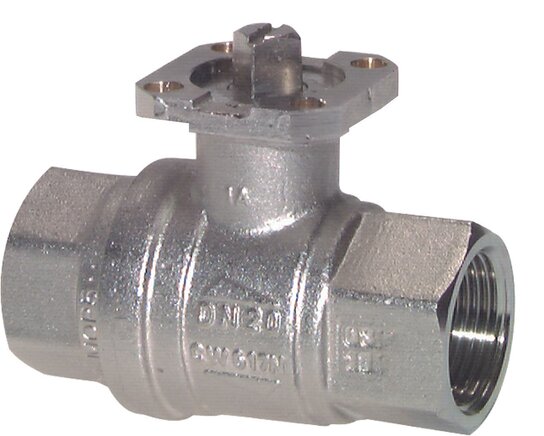

Brass ball valve, direct assembly flange Rp 3/8", -0,9 do 40bar

KH 38 F MS

Zgleden uprizoritev
71,89€ z DDV
Kos
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Housing: nickel-plated brass, ball: hard chromium plated brass, seal: PTFE / FKM

Temperature range:
-20°C to max. +160°C (G 2-1/2" - Rp 4": max. +120°C), gas: -20°C to max. +60°C

Operating range:
Water, oil, compressed air, vacuum (max. -0 , 9 bar), fuels, heating oil, solvents, weak acids and alkalis, G 1/2" - G 2": Gases in accordance with DVGW worksheet (such.as. Natural gas, city gas, liquid gas up to 5 bar)

Advantages:
•Length according to DIN 3202-M3 and DVGW approval (PN 5 / MOP 5) für G 1/2" - G 2",
•An actuator can be fitted directly on the ISO 5211 assembly flange to automate the ball valve,
•silicone-free manufacture (G 1/2" - G 2")
{{ $t('shop.display.artikel.eigenschaften_headline') }}
G Rp 3/8"
DN 14
L 64
PN -0,9 do 40
ISO 5211 F03
Temperaturno območje od -20 do +160
KH38FMS
{{ $t('shop.all.gewicht') }} 320 g / Kos
{{ $t('shop.all.gtin') }} 4050571421175
{{ $t('shop.display.artikel.zollwarennummer') }} 84818081
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.dokumente') }}
    Catalogue page Atlas 9 (Page 536) atlas9_seiten/536.pdf
    3D CAD file (volume model) protected/cad/3d/71865/kh38fms50507.stp
    Direct assembly flange as per ISO 5211 – A simple and fast solution!
