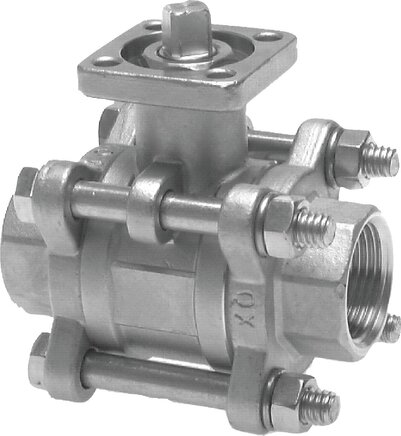

Stainless steel ball valve, direct assembly flange G 3",PN 63

KH 303 F ES

Zgleden uprizoritev
1180,33€ z DDV
Kos
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Housing: 1.4408, ball: 1.4408, seal: PTFE / FKM

Temperature range:
-20°C do +180°C

Operating range:
Water, oil, compressed air, vacuum (max. -0.9 bar), fuels, solvents, aggressive media

Advantages:
•Length according to DIN 3202-M3,
•an actuator can be fitted to the ISO 5211 assembly flange to automate the operation of the ball valve.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
G G 3"
DN 80
L 205
PN -0,9 do 63
ISO 5211 F07
ISO 5211 F10 (štirirobno 17)
KH303FES
{{ $t('shop.all.gewicht') }} 12 kg / Kos
{{ $t('shop.all.gtin') }} 4050571419165
{{ $t('shop.display.artikel.zollwarennummer') }} 84818081
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.dokumente') }}
    Catalogue page Atlas 9 (Page 536) atlas9_seiten/536.pdf
    3D CAD file (volume model) protected/cad/3d/71865/kh303fes142316.stp
    Direct assembly flange as per ISO 5211 – A simple and fast solution!
  • {{ $t('shop.display.datenblatt.titel') }} (Pogled za tiskanje)
*length not according to DIN

{{ $t('shop.all.unverbindliche_richtwerte') }}
