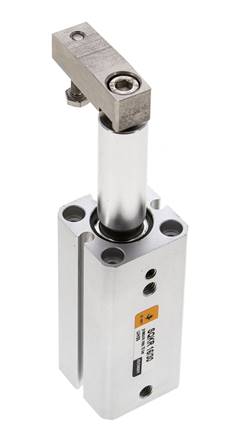

Swivel clamps / clamping cylinder Ø 16 mm, clamping stroke 30mm vrtljivo na desno (niha pri vpetju v
Št. Izdelka:
SQKR 16/30
Opis artikla
Materials:
Body: Aluminium anodised, piston rod: hard chromium plated steel, seals: NBR / PUR
Temperature range:
-10 do +70 °C
Operating pressure:
maks. 10 bar
Swivel angle:
90° (± 10°)
Version:
With Magnetic piston
Note:
•only operate cylinders positioned vertically or suspended
•clamps only allowed inside the clamping stroke and on level surfaces,
•workpiece must be idle during clamping process
Advantages:
•simple mechanics, robust construction
•supplied with removable lever arm, which can be adjusted in 90° increments
•Main dimensions identical to SMC Series MKB
Cylinder switch type:
D
Body: Aluminium anodised, piston rod: hard chromium plated steel, seals: NBR / PUR
Temperature range:
-10 do +70 °C
Operating pressure:
maks. 10 bar
Swivel angle:
90° (± 10°)
Version:
With Magnetic piston
Note:
•only operate cylinders positioned vertically or suspended
•clamps only allowed inside the clamping stroke and on level surfaces,
•workpiece must be idle during clamping process
Advantages:
•simple mechanics, robust construction
•supplied with removable lever arm, which can be adjusted in 90° increments
•Main dimensions identical to SMC Series MKB
Cylinder switch type:
D
Lastnosti
| Izvedba | vrtljivo na desno* (niha pri vpetju v smeri urinega kazalca) |
| Premer bata | 16 |
| Hod z vpenjanjem | 30 |
| Nagibni hod | 7,5 |
| učinkovit premer bata pri sponkah | 13,9 |
| G (priključek stisnjenega zraka) | M 5 |
| Kompleti za popravila | SQK 16 REP |
| A | 29 |
| B | 3,0 |
| C | 20,0 |
| D | 7 |
| E | 6 - 16 |
| F | 5,5 |
| H | 8 |
| I | 5 |
| M (uvlečen) | 51,5 |
| M (izvlečen) | 89,0 |
| N | 11 |
| O | 36 |
| P | 25 |
| Q | 15,5 |
| R | 35,5 |
| S | 12,0 |
| U | 11 |
| V | M 4 |
| Y (+0/-0,05) | 14 |
| Z | M 4 |
Dodatne informacije o SQKR16/30
| Teža | 200 g / Kos |
| GTIN | 4050571930202 |
| Številka carinskega blaga | 84123100 |
| Skladno z RoHS | Da |
| Proizvajalec | EMC |
