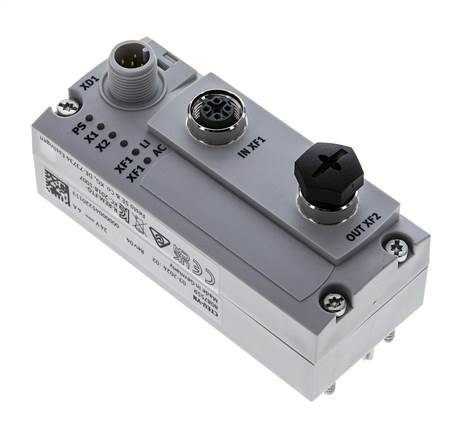

vlastnosti
| Dimensions W x L x H | 40 mm x 91 mm x 50 mm |
| Pitch dimension [mm] | 40 |
| Fastening type |
auf Elektrik-Anschaltung, auf Elektrik-Anschlussplatte |
| Fieldbus interface | Ethernet |
| Fieldbus interface, report | VARAN |
| Fieldbus interface, connection type | 2x socket |
| Fieldbus interface, connection technology | M12x1 D coded to EN 61076-2-101 |
| Fieldbus interface, number of pins / wires | 4 |
| Fieldbus interface, galvanically separated | yes |
| Fieldbus interface, transfer rate | 100 Mbit/s |
| Internal cycle time | 1 ms per 1 byte user data |
| Max. address volume inputs [Byte] | 32 |
| Max. address volume outputs [Byte] | 32 |
| Voltage supply, function | Electronics and load |
| Voltage supply, connection type | Plug |
| Voltage supply, connection technology | M12x1 A coded to EN 61076-2-101 |
| Voltage supply, number of poles/wires | 5 |
| Diagnosis |
Unterspannung, Kommunikationsfehler, Systemdiagnose |
| Parameterising |
Failsafe-Reaktion, IO-Link Modus |
| Additional functions |
FFT, VARAN Splitter |
| LED display product specific |
PS: Operating voltage electronics and load supply, X1: System status module I port 1, X2: System status module I port 2 |
| LED display bus specific |
XF1 AC: Netzwerk Datenverkehr Port 1, XF1 LI: Netzwerk aktiv Port 1 |
| Operating voltage range DC [V] | 18 to 30 |
| Nominal operating voltage DC [V] | 24 |
| Intrinsic power input at operating voltage | Type 65 mA |
| Max. power supply [A] | 4 |
| Permission | RCM mark |
| KC-mark | KC-EMV |
| CE certificate (see declaration of conformity) | to EU EMC directive |
| Corrosion resistant class KBK | 2 - moderate corrosion stress |
| Bearing temperature [°C] | -20 to 70 |
| Protection category |
IP65, IP67 |
| Information about protection category |
in assembled condition, unused connection closed |
| ambient temperature [°C] | -5 to 50 |
| Housing material | PA |
| Material information |
LABS containing materials included, RoHs compliant |
| Configuration support | LASAL Baustein |
Další informace k OT-FESTO085261
| hmotnost | 105 g / ks |
| GTIN | 4052568451608 |
| Celní číslo zboží | 85176200 |
| výrobce | Festo |
Dokumenty
Všechny údaje se rozumějí jako nezávazné směrné hodnoty! Za výběr údajů nepotvrzených písemně nepřebíráme žádnou záruku. Údaje o tlaku se vztahují, pokud není uvedeno jinak, ke kapalinám skupiny II při +20°C.
