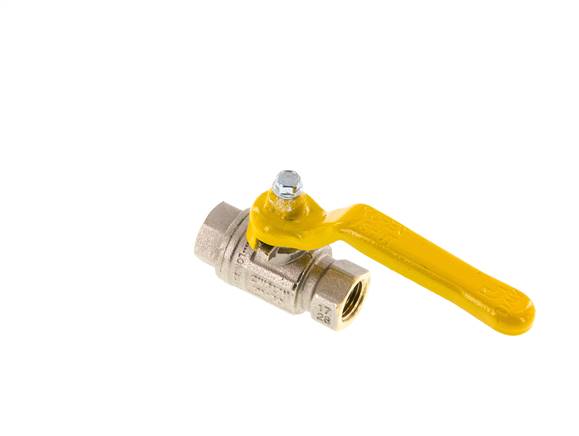

Brass ball valve, DVGW, Rp 1/4", -0,9 do 50 bar

KH 14 DVGW **

Zgleden uprizoritev: DVGW ball valve with standard handle Zgleden uprizoritev: Standard handle for ball valve (yellow) Zgleden uprizoritev: Toggle handle for ball valve (yellow) Zgleden uprizoritev: Flat steel handle for ball valve (yellow)
14,41€ z DDV
Kos
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Housing: nickel-plated brass, ball: hard chromium plated brass, seal: PTFE / NBR

Temperature range:
-20°C do +150°C, gas: -20°C to max. +60°C

Media:
Water (no steam), neutral, gaseous and non-aggressive, liquid media, mineral oils, compressed air, vacuum (max. -0.9 bar), gases in accordance with DVGW worksheet (e.g. natural gas, city gas, liquid gas up to 5 bar)

Advantages:
•Length according to DIN 3202-M3,
•By purchasing the optional combi handles, you can construct various handle variations: -Standard handle in red, yellow, blue and black, -Butterfly handle in red, yellow, blue, black and green, -Flat-steel handle in red, yellow and green (optional: lockable***), -long handle in red
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Izvedba Standard
Navoj G Rp 1/4"
DN 10
L 49,5
PN* -0,9 do 50
H 37
R 80
Nadomestna ročka standard KOMBI 1 S GELB
Tročaj KOMBI 1 K GELB
Ploščato jeklo ročka KOMBI 1 F GELB
KH14DVGW
{{ $t('shop.all.gewicht') }} 130 g / Kos
{{ $t('shop.all.gtin') }} 4050571409920
{{ $t('shop.display.artikel.zollwarennummer') }} 84818081
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.dokumente') }}
    Catalogue page Atlas 9 (Page 493) atlas9_seiten/493.pdf
    Dokumentacijo: DVGW Gas and Pressure Equipment Directive statement konf_erkl/stellungnahme_dvgw_gas_und_druckgeraeterichtlinie_kh_dvgw_khia_dvgw_de_en_la.pdf
    3D CAD file (surface model) protected/cad/3d/70080/kh14dvgw#7063.stp
  • {{ $t('shop.display.datenblatt.titel') }} (Pogled za tiskanje)
*For gas up to PN 5 bar / MOP 5, **No DIN length, ***Not for combi handle size 3
