Opis artikla
Materials:
Body: brass, nickel-plated brass, hardened steel or stainless steel 1.4305, seal: NBR (stainless steel: FKM)
Temperature range:
-20°C to max. +100°C (stainless steel: -15°C to max. +200°C, plastic sleeve max. +80°C)
Operating pressure:
-0,95 do 35 bar
Flow***:
Standard: 1100 l/min, ball lock: 1850 l/min, ball lock & plastic sleeve: 2100 l/min (each coupling in conjunction with blocking coupling plug -BA: 800 l/min)
Note:
Coupling plugs with valve for double-sided shut off (-BA) can only be used with the special coupling sockets (-BA) provided for them.
Compatible with**:
Rectus (25, 26, 1600, 1625), TEMA (1600), CEJN (320), JWL (520, 530, 560), Legris (25, 26), Parker (PE, PEF), Prevost (E ... 07), Festo (KD4 / KS4 / NPHS), IMI-Norgren (238), Aventics (CP1-NW 7 / 7.8) and many other German brands
Optional:
Can be used for plug shut-off on both sides -BA
Body: brass, nickel-plated brass, hardened steel or stainless steel 1.4305, seal: NBR (stainless steel: FKM)
Temperature range:
-20°C to max. +100°C (stainless steel: -15°C to max. +200°C, plastic sleeve max. +80°C)
Operating pressure:
-0,95 do 35 bar
Flow***:
Standard: 1100 l/min, ball lock: 1850 l/min, ball lock & plastic sleeve: 2100 l/min (each coupling in conjunction with blocking coupling plug -BA: 800 l/min)
Note:
Coupling plugs with valve for double-sided shut off (-BA) can only be used with the special coupling sockets (-BA) provided for them.
Compatible with**:
Rectus (25, 26, 1600, 1625), TEMA (1600), CEJN (320), JWL (520, 530, 560), Legris (25, 26), Parker (PE, PEF), Prevost (E ... 07), Festo (KD4 / KS4 / NPHS), IMI-Norgren (238), Aventics (CP1-NW 7 / 7.8) and many other German brands
Optional:
Can be used for plug shut-off on both sides -BA
Lastnosti

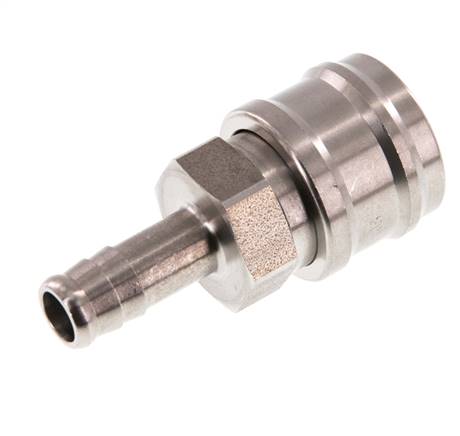

| Material | Nerjavno jeklo |
| Premer mehke cevi (znotraj) | 10 |
| Primerno za vtiče – omogočajo obojestransko zaporo | ne |
| dejanska nazivna širina | 7,2 |
| Temperaturno območje | od -15 do +200 |
Dodatne informacije o KDS10NW7ES
| Teža | 95 g / Kos |
| GTIN | 4050571154103 |
| Številka carinskega blaga | 84812090 |
| Skladno z RoHS | Da |
YouTube videi:
Dokumenti
- Catalogue page Atlas 9 (Page 284) (PDF)
- 3D CAD file (volume model) (Samo za prijavljene stranke) (STP)
- Podatkovni list (Pogled za tiskanje)
- Podatkovni list (angleščina) (Pogled za tiskanje)
***6 bar input pressure, 0,5 bar pressure difference
**Names and designations are partly trademarks of the manufacturers entered.
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
