295,93 € z DDV
Kos
Opis artikla
Suitable:
The differential pressure-pressure gauge is suitable for liquid and gaseous media as long as these are not highly viscous or crystallised.

Function:

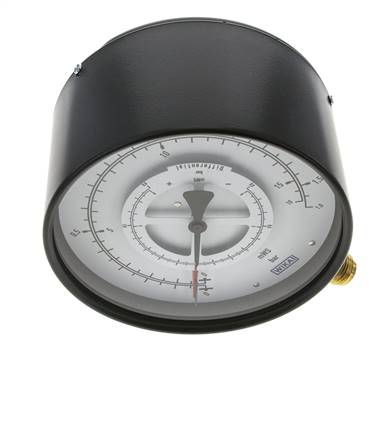

Two independent pipe spring measuring systems work in the stable round housing. Both system indicators rotate around the same centre axis and display the pressures separately. The pointer with the lower pressure is designed as scale window. On this scale, the differential pressure of the respective display range can be read directly. Both single pressures are also directly visible.

Materials:
Housing: black steel, measuring system and connection: Cu alloy, window: instrument plate glass

Connection thread:
2x G 1/2" *

Class:
1,6

Temperature range:
-20 do +60 °C

Protection class:
IP 33

Note:
WIKA Type 711.12

Optional:
ISO factory calibration (following DIN EN 837-1, determination of measurement deviation and hysteresis), DAkkS-DKD calibration (in accordance with DKD-R 6-1, traceable and accredited in accordance with DIN EN ISO/IEC 17025, decision rule 4)
Lastnosti
Pre­mer 160
Ob­mo­čje pri­ka­za 0 - 1,6
Raz­de­li­tev le­stvi­ce 0,05
Dodatne informacije o MSD1,6160
Teža 1,7 kg / Kos
GTIN 4050571501952
Številka carinskega blaga 90262040
Skladno z RoHS Da
Proizvajalec WIKA (WEEE DE92770372)
Dokumenti
*with centring pin for profiled seal


Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
