Suitable:
Using PU multiple hoses you can make clearly arranged assemblies - valves to cylinders, for example. For the assembly the hose pair must be cut using a sharp knife at both hose ends, and then fitted to the hose connection. If required, the hose ends should be cleanly cut again.
Properties:
High elongation at break, abrasion resistance and flexibility. Suitable for use in drag chains.
Materials:
Polyester polyurethane
Temperature range:
-35 do +60 °C
Shore hardness:
95 - 98 A
Using PU multiple hoses you can make clearly arranged assemblies - valves to cylinders, for example. For the assembly the hose pair must be cut using a sharp knife at both hose ends, and then fitted to the hose connection. If required, the hose ends should be cleanly cut again.
Properties:
High elongation at break, abrasion resistance and flexibility. Suitable for use in drag chains.
Materials:
Polyester polyurethane
Temperature range:
-35 do +60 °C
Shore hardness:
95 - 98 A
Lastnosti
| Izvedba | Trojna cev (3-krat) |
| Premer mehke cevi (zunaj x znotraj) | 6 x 4 |
| Obratovalni tlak | 12 |
| min. upogibni radij | 18 |
| Dolžina valjev | 25 |

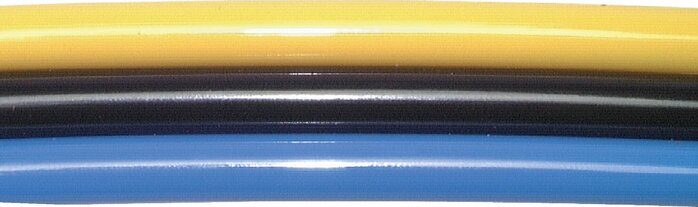

| Barve | modro - črno - rumeno |
Dodatne informacije o PUN6X4TRIO
| Teža | 55 g / m |
| GTIN | 4050571552640 |
| Embalažna enota | 25 m |
| Številka carinskega blaga | 39173900 |
| Skladno z RoHS | Da |
YouTube videi:
Dokumenti
- Catalogue page Atlas 9 (Page 376) (PDF)
- Podatkovni list (Pogled za tiskanje)
- Podatkovni list (angleščina) (Pogled za tiskanje)
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
