Opis artikla
Suitable:
These valves are used in mobile and industrial applications. Compact control blocks with up to 9 consumers such as hydraulic cylinders and hydraulic motors can be assembled using the modular system. In the basic components the zero position of the valve is always designed as a no-pressure cycle from P to T. The input element has a pressure limiting valve with a settings range of 40 - 320 bar. As a standard, the hand lever elements are provided with a spring return to the centre position.
The basic components can be easily converted from spring return to detent or locking of the pressureless circulation with the components marked as retrofit kits.
Materials:
Body: steel and plastic, internal parts: steel, seal: plastic / NBR
Temperature range:
-30 do +90 °C
Media:
Hydraulic oils on the basis of mineral oil (viscosity range: 10 - 300 mm²/s)
Operating pressure:
Inlet pressure: 0 do 320 bar, return pressure max. 35 bar (pressure relief valve adjustable 40 - 320 bar)
Nominal flow:
1 - 2 elements: max. 50 l/min, 3 - 5 elements: max. 45 l/min, 6 - 7 elements: max. 40 l/min, 8 - 9 elements: max. 35 l/min
These valves are used in mobile and industrial applications. Compact control blocks with up to 9 consumers such as hydraulic cylinders and hydraulic motors can be assembled using the modular system. In the basic components the zero position of the valve is always designed as a no-pressure cycle from P to T. The input element has a pressure limiting valve with a settings range of 40 - 320 bar. As a standard, the hand lever elements are provided with a spring return to the centre position.
The basic components can be easily converted from spring return to detent or locking of the pressureless circulation with the components marked as retrofit kits.
Materials:
Body: steel and plastic, internal parts: steel, seal: plastic / NBR
Temperature range:
-30 do +90 °C
Media:
Hydraulic oils on the basis of mineral oil (viscosity range: 10 - 300 mm²/s)
Operating pressure:
Inlet pressure: 0 do 320 bar, return pressure max. 35 bar (pressure relief valve adjustable 40 - 320 bar)
Nominal flow:
1 - 2 elements: max. 50 l/min, 3 - 5 elements: max. 45 l/min, 6 - 7 elements: max. 40 l/min, 8 - 9 elements: max. 35 l/min
Lastnosti

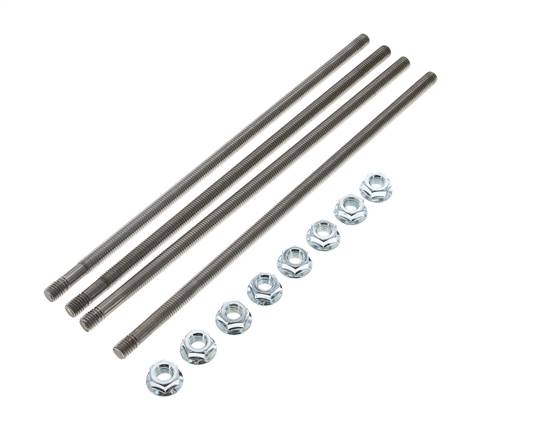

| Izvedba | Set pritrditev |
| Oznaka/funkcija | za 4 elemente ročnega vzvoda |
Dodatne informacije o CH50ZUGANKERT4
| Teža | 340 g / Kos |
| GTIN | 4050571232542 |
| Številka carinskega blaga | 84122120 |
Dokumenti
- Catalogue page Atlas 9 (Page 818_819) (PDF)
- Podatkovni list (Pogled za tiskanje)
- Podatkovni list (angleščina) (Pogled za tiskanje)
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
