Ventili z rocico in modularni izvedbi, do 50 l/min

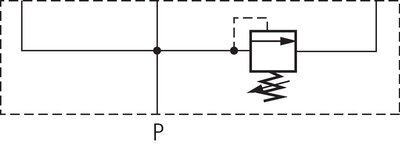

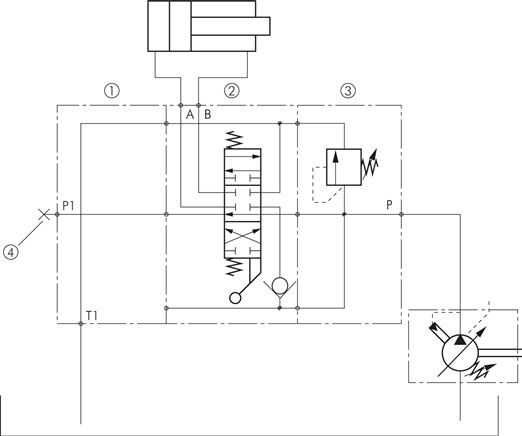

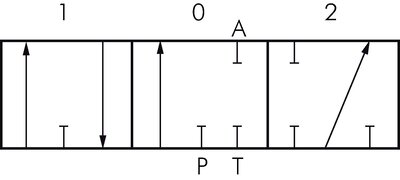

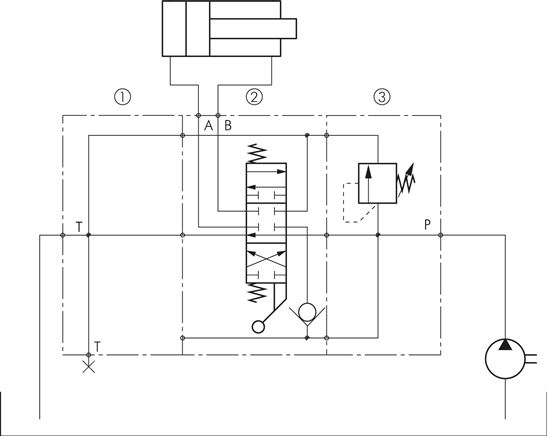

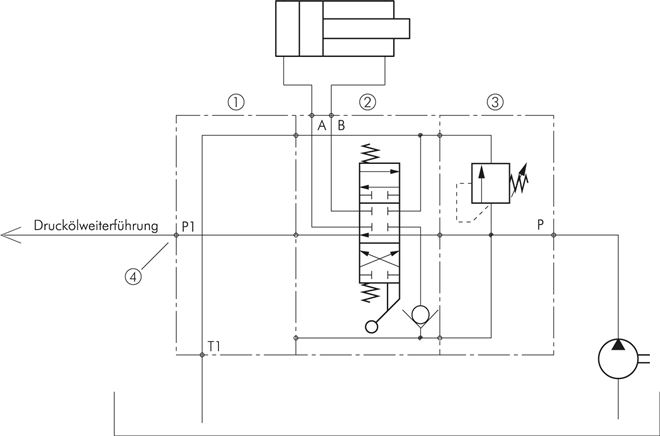

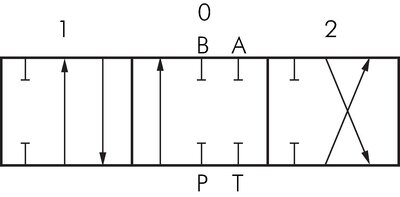

Zgleden uprizoritev: CH50 ELEMENT E Zgleden uprizoritev: CH50 ELEMENT S Zgleden uprizoritev: CH50 SCF Zgleden uprizoritev: CH50 SCS Schematic symbol: CH50 ELEMENT E Schematic symbol: CH50 ELEMENT DRR Schematic symbol: CH50 ELEMENT LRR Schematic symbol: CH50 ELEMENT SRR Schematic symbol: CH 50 S Schematic symbol: CH 50 SCF Schematic symbol: CH 50 SCS Schematic symbol: CH50 ELEMENT S

Suitable:

These valves are used in mobile and industrial applications. Compact control blocks with up to 9 consumers such as hydraulic cylinders and hydraulic motors can be assembled using the modular system. In the basic components the zero position of the valve is always designed as a no-pressure cycle from P to T. The input element has a pressure limiting valve with a settings range of 40 - 320 bar. As a standard, the hand lever elements are provided with a spring return to the centre position.

The components labelled as retrofitting kits are used to retrofit the basic components from spring return to detend or block the no-pressure cycle.

Materials:

Body: steel and plastic, internal parts: steel, seal: plastic / NBR

Temperature range:

-30°C do +90°C

Operating pressure:

Input pressure: 0 to max. 320 bar, return flow pressure max. 35 bar (input element with pressure limiting valve can be set between 40 and 320 bar)

Media:

Hydraulic oils on the basis of mineral oil (viscosity range: 10 - 300 mm²/s)

Dimensions:

1 hand lever element: x 130 mm, y 83 mm, max. flow 50 l/min - 2 hand lever elements: x 168 mm, y 121 mm, max. flow 50 l/min - 3 hand lever elements: x 206 mm, y 159 mm, max. flow 45 l/min - 4 hand lever elements: x 244 mm, y 197 mm, max. flow 45 l/min - 5 hand lever elements: x 282 mm, y 235 mm, max. flow 45 l/min - 6 hand lever elements: x 320 mm, y 273 mm, max. flow 40 l/min - 7 hand lever elements: x 358 mm, y 311 mm, max. flow 40 l/min - 8 hand lever elements: x 396 mm, y 349 mm, max. flow 35 l/min - 9 hand lever elements: x 434 mm, y 387 mm, max. flow 35 l/min

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 818_819) atlas9_seiten/818_819.pdf
    Mit dem Handhebelventilsystem mehrere Funktionen gleichzeitig steuern!
