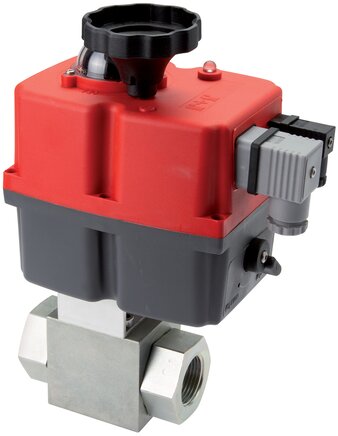

Visokotlacni krogelni ventili z elektricnim rotacijskim pogonom, do 500 bar

Zgleden uprizoritev

Advantages:

•2 additional limit switches,
•torque cut-off,
•variable voltage (DC or AC),
•manual emergency operation,
•integrated heating in actuator housing

Ball valve

Materials:

housing: Zinc plated steel, cone: Hard chrome-plated brass (DN 32 to 50: Hard chrome-plated steel), ball seal: POM, selector shaft seal: NBR

Temperature range:

-20°C up to max. +100°C (G 1-1/4" to G 2": -10°C up to max. +80°C)

Operating range:

Hydraulic oil, heating oil, vacuum (max. -0.3 bar), (water only after approval from us)

Optional:

Ball valve made of stainless steel 1.4571 -ES

Rotary actuator

Description:

Electrical rotary actuator with optical position indicator, manual emergency operation and switch room heating Two additional limit switches are installed for further control requirements. An electronic torque limiting unit prevents damage in the event of overload. The manual emergency operation can be done without dismantling the external cladding. Do not use upside down!

Materials:

housing: PA 6

Temperature range:

-20°C do +70°C

Voltage:

24 - 240 V AC / 24 - 135 V DC, (actuators can be powered with AC or DC voltage).

Protection class:

IP 67

Power-on time:

75%

Optional:

"Battery Safety Return" for emergency closing NC (standard configuration) or emergency opening NO (conversion with a jumper) when there is a power failure -BSR

Warning:

In case of high media temperatures, the actuator must be cooled if necessary!

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 540) atlas9_seiten/540.pdf
    Dokumentacijo doku/kheli.pdf
    Function and structure of an electrical ball valve
    Secure electrically operated ball valves with the BSR system!
{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ filter.Eigenschaft.EigenschaftName }}
{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
Visokotlacni krogelni ventili z elektricnim rotacijskim pogonom, do 500 bar:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}
Electrical. High pressure ball valve, G 1/4", 24 do 240 V (AC) / 24 do 135 V (DC)
Electrical. High pressure ball valve, G 3/8", 24 do 240 V (AC) / 24 do 135 V (DC)
Electrical. High pressure ball valve, G 1/2", 24 do 240 V (AC) / 24 do 135 V (DC)
Electrical. High pressure ball valve, G 3/4", 24 do 240 V (AC) / 24 do 135 V (DC)
Electrical. High pressure ball valve, G 1", 24 do 240 V (AC) / 24 do 135 V (DC)
Electrical. High pressure ball valve, G 1-1/4", 12 do 24 V (AC/DC)
Electrical. High pressure ball valve, G 1-1/4", 24 do 240 V (AC) / 24 do 135 V (DC)
Electrical. High pressure ball valve, G 1-1/2", 24 do 240 V (AC) / 24 do 135 V (DC)
Electrical. High pressure ball valve, G 2", 24 do 240 V (AC) / 24 do 135 V (DC)
Electrical. High pressure ball valve, G 1/4", 24 do 240 V (AC) / 24 do 135 V (DC)
Electrical. High pressure ball valve, G 3/8", 24 do 240 V (AC) / 24 do 135 V (DC)
Electrical. High pressure ball valve, G 1/2", 24 do 240 V (AC) / 24 do 135 V (DC)
Electrical. High pressure ball valve, G 3/4", 24 do 240 V (AC) / 24 do 135 V (DC)
Electrical. High pressure ball valve, G 1", 24 do 240 V (AC) / 24 do 135 V (DC)
Electrical. High pressure ball valve, G 1-1/4", 24 do 240 V (AC) / 24 do 135 V (DC)
Electrical. High pressure ball valve, G 1-1/2", 24 do 240 V (AC) / 24 do 135 V (DC)
Electrical. High pressure ball valve, G 2", 24 do 240 V (AC) / 24 do 135 V (DC)
Electrical. High pressure ball valve, G 1/4", 24 do 240 V (AC) / 24 do 135 V (DC)
Electrical. High pressure ball valve, G 3/8", 24 do 240 V (AC) / 24 do 135 V (DC)
Electrical. High pressure ball valve, G 1/2", 24 do 240 V (AC) / 24 do 135 V (DC)
