Skupina artiklov

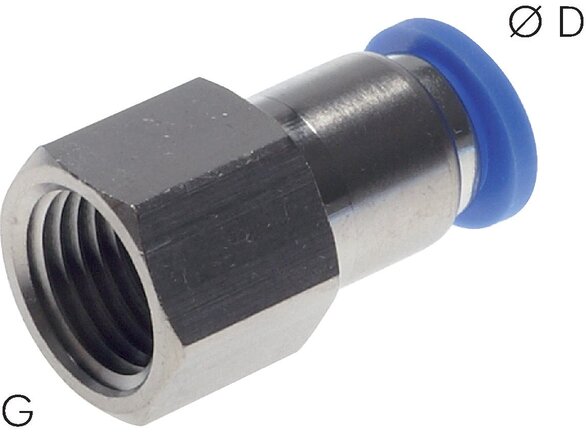

Vticno-vijacni prikljucki z notranjim navojem, Standard

Materials:

Body: nickel-plated brass / PA 66, sleeve: PA 66 (M 3: nickel-plated steel / PA66), seal: NBR, holding claws: stainless steel, cartridge: Zinc-plated ZnDC (only silicone-free seals and lubricants are used during assembly)

Temperature range:

-20 do +80 °C

Operating pressure:

-0,95 do 20 bar

Media:

oiled and unoiled compressed air, neutral gases and water (water up to max 60° C may be used only after we have approved the performance specifications).

Advantages:

•Wide variety of products,
•extremely tight due to lip seal,
•available with conical, PTFE-coated thread or with cylindrical thread and captive O-ring

Dokumenti:

Več informacij Manj podatkov

Filtriraj artikle

Valve function
Prosimo, izberite
Normal nominal flow [l/min]
Prosimo, izberite
Operating pressure [bar]
Prosimo, izberite
Construction set up
Prosimo, izberite
več filtrov
Vticno-vijacni prikljucki z notranjim navojem, Standard:
20 od 21 izdelkov
Push in fitting m. Female thread. M 3-3mm, IQS standard(IQSF M33)
IQSF M33
Push in fitting m. Female thread. M 3-3mm, IQS standard
2,89 € z DDV
Takoj dobavljivo
Push in fitting m. Female thread. M 3-4mm, IQS standard(IQSF M34)
IQSF M34
Push in fitting m. Female thread. M 3-4mm, IQS standard
2,77 € z DDV
Takoj dobavljivo
Push in fitting m. Female thread. M 5-3mm, IQS standard(IQSF M53)
IQSF M53
Push in fitting m. Female thread. M 5-3mm, IQS standard
2,99 € z DDV
Takoj dobavljivo
Push in fitting m. Female thread. M 5-4mm, IQS standard(IQSF M54)
IQSF M54
Push in fitting m. Female thread. M 5-4mm, IQS standard
2,77 € z DDV
Takoj dobavljivo
Push in fitting m. Female thread. G 1/8"-4mm, IQS standard(IQSF 184)
IQSF 184
Push in fitting m. Female thread. G 1/8"-4mm, IQS standard
3,38 € z DDV
Takoj dobavljivo
Push in fitting m. Female thread. G 1/8"-6mm, IQS standard(IQSF 186)
IQSF 186
Push in fitting m. Female thread. G 1/8"-6mm, IQS standard
3,44 € z DDV
Takoj dobavljivo
Push in fitting m. Female thread. G 1/8"-8mm, IQS standard(IQSF 188)
IQSF 188
Push in fitting m. Female thread. G 1/8"-8mm, IQS standard
4,03 € z DDV
Takoj dobavljivo
Push in fitting m. Female thread. G 1/8"-10mm, IQS standard(IQSF 1810)
IQSF 1810
Push in fitting m. Female thread. G 1/8"-10mm, IQS standard
5,12 € z DDV
Takoj dobavljivo
Push in fitting m. Female thread. G 1/4"-4mm, IQS standard(IQSF 144)
IQSF 144
Push in fitting m. Female thread. G 1/4"-4mm, IQS standard
3,68 € z DDV
Takoj dobavljivo
Push in fitting m. Female thread. G 1/4"-6mm, IQS standard(IQSF 146)
IQSF 146
Push in fitting m. Female thread. G 1/4"-6mm, IQS standard
3,74 € z DDV
Takoj dobavljivo
Push in fitting m. Female thread. G 1/4"-8mm, IQS standard(IQSF 148)
IQSF 148
Push in fitting m. Female thread. G 1/4"-8mm, IQS standard
4,18 € z DDV
Takoj dobavljivo
Push in fitting m. Female thread. G 1/4"-10mm, IQS standard(IQSF 1410)
IQSF 1410
Push in fitting m. Female thread. G 1/4"-10mm, IQS standard
4,62 € z DDV
Takoj dobavljivo
Push in fitting m. Female thread. G 1/4"-12mm, IQS standard(IQSF 1412)
IQSF 1412
Push in fitting m. Female thread. G 1/4"-12mm, IQS standard
4,61 € z DDV
Takoj dobavljivo
Push in fitting m. Female thread. G 3/8"-6mm, IQS standard(IQSF 386)
IQSF 386
Push in fitting m. Female thread. G 3/8"-6mm, IQS standard
4,88 € z DDV
Takoj dobavljivo
Push in fitting m. Female thread. G 3/8"-8mm, IQS standard(IQSF 388)
IQSF 388
Push in fitting m. Female thread. G 3/8"-8mm, IQS standard
4,53 € z DDV
Takoj dobavljivo
Push in fitting m. Female thread. G 3/8"-10mm, IQS standard(IQSF 3810)
IQSF 3810
Push in fitting m. Female thread. G 3/8"-10mm, IQS standard
4,77 € z DDV
Takoj dobavljivo
Push in fitting m. Female thread. G 3/8"-12mm, IQS standard(IQSF 3812)
IQSF 3812
Push in fitting m. Female thread. G 3/8"-12mm, IQS standard
5,13 € z DDV
Takoj dobavljivo
Push in fitting m. Female thread. G 1/2"-8mm, IQS standard(IQSF 128)
IQSF 128
Push in fitting m. Female thread. G 1/2"-8mm, IQS standard
7,87 € z DDV
Takoj dobavljivo
Push in fitting m. Female thread. G 1/2"-10mm, IQS standard(IQSF 1210)
IQSF 1210
Push in fitting m. Female thread. G 1/2"-10mm, IQS standard
8,69 € z DDV
Takoj dobavljivo
Push in fitting m. Female thread. G 1/2"-12mm, IQS standard(IQSF 1212)
IQSF 1212
Push in fitting m. Female thread. G 1/2"-12mm, IQS standard
8,75 € z DDV
Takoj dobavljivo
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
